Dettagli:
|
| Tipo di inchiostro: | Inchiostro di sublimazione, inchiostro di pigmento | Colore e pagina: | MULTICOLORE |
|---|---|---|---|
| Utilizzo: | Campo pubblicitario interno e esterno | OS compatibile: | Windows 7 e Windows 10 |
| Sofware: | ONICE | Potenza del riscaldatore: | 6KW |
| Grado automatico: | Automatico | Voltaggio: | AC100-120V/AC220-240V |
| Tipo di tessuto adatto: | Cotone a maglia o tessuto, lino, seta, lana, fibra chimica, nylon.oxford ecc. | Elaborazione dei media: | Rotolare su roll + alimentazione automatica + roll up automatico |

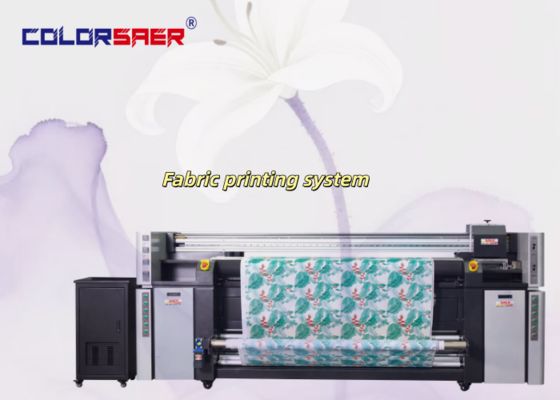

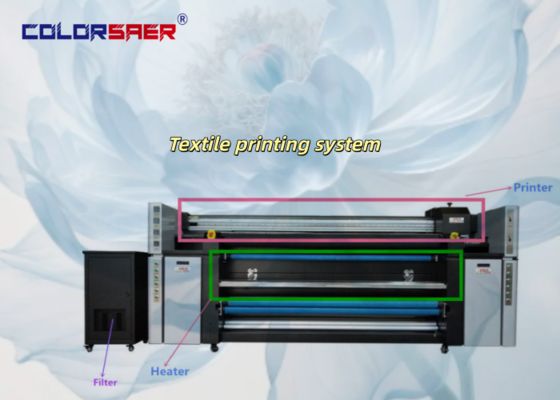

Product name: Factory Direct High Precision Textile Printer China Made Digital Fabric Printing System for Polyster & Cotton
Machine working speed :
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Specification
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Application industry:
