Dettagli:
|
| Alimentazione elettrica: | AC380, 50/60HZ | Colore & pagina:: | Multicolore |
|---|---|---|---|
| Utilizzo: | Campo pubblicitario interno e esterno | OS compatibile: | Windows 7 e Windows 10 |
| Sofware: | ONICE | Potenza di lavoro della macchina: | 9KW |
| Grado automatico: | Automatico | Tipo di tessuto adatto: | cotone & poliestere |
| Elaborazione dei media: | Rotolare su roll + alimentazione automatica + roll up automatico | Tipo di inchiostro: | Inchiostro pigmentato e inchiostro sublimatico |
| Evidenziare: | energy-efficient fabric roll printing system,far infrared heating tube oven,cotton polyester fabric plotter |
||

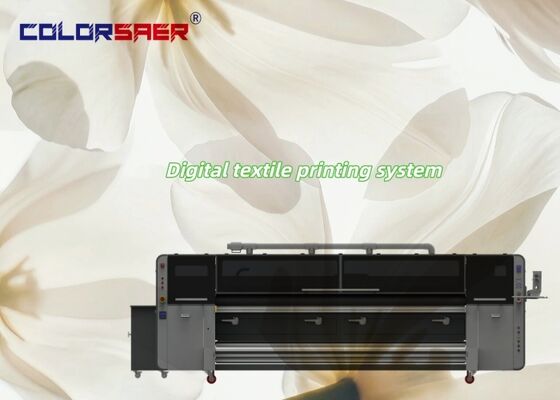

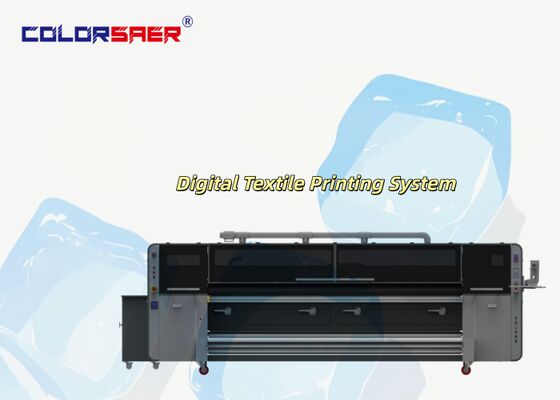

Product name: SAER Energy-Efficient Fabric Roll To Roll Printing System With Far Infrared Heating Tube Oven For Cotton & Polyester Fabric
Machine Attributes Data :
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 4 pieces KJ4B-QL |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | 2656 nozzles |
| Color | CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 3200mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC380V ,50/60HZ |
|
Power |
Heater 3KW |
| Printer 6KW | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
Main Features:
Print head: 4 pcs KJ4B-QL Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit．
Machine Advantages:
Negetive pressure advantages:
1) Ink supply system is sealed , machine can work under a constant pressure
2) Can make sure machine work stable
3)Print heads without nozzle blocking when working
4)No need to wash print head high frequent
5)Machine can hover for a long time during working period
FAQ:
1) How can I place order?
A: Contact us about your order details,we will prepare the PI .
2) How can I pay you?
A: Uaually we accept T/T, Western Union
3) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.
4) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.
5) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.
Professinal Service:
SAER COLOR redefines service standerds enhance customer experience in all aspects:
1.SAER has more than20 years of foreign trade experience, focusing on the domestic printer industry. We are reliable,trusted,independent research and development, industry reputation are second to none;
2.365 days customer service and after-sales online service, can supply for one-on-one service.
3.Provide global installation services,make sure that each customer completes theinstallation within with 5 days and can start printing
4.Professional team makes packing list, bill of lading, commercial invoice, certificate of origin ,packing declaration, etc. To make sure customers have no worries about customs clearance and delivery.
Logistics Service:
Application industry:
